PED (Pressure Equipment Directive) App.

Equipment Type

Pressure Vessel
Piping
Steam Generators

Gas or Liquid Group

Gas Group 1
Gas Group 2
Liquid Group 1
Liquid Group 2

Maximum Operating Pressure (bar g)



Volume (lt)

Notes


Classification of Gasses and Liquids


Group 1 Explosive, Very Toxic, Extremely Flammable, Toxic, Highly Flammable, Oxidising

Group 2 All other fluids including Steam

Maximum Operating Pressure

The maximum allowable pressure in bar g for which the equipment is designed as specified by the manufacturer.

Volume

The internal volume of the pressure vessel or steam generator in litres.

Nominal Size

The internal diameter of the pipe in mm.

PED Does Not Apply to Pressures Less Than 0.5 barg.

SEP (Sound Engineering Practice)


Sound Engineering Practice means that the pressure equipment is designed taking into account all relevant factors influencing its safety. Furthermore, such equipment is manufactured, verified and delivered with instructions for use in order to ensure its safety during its intended life, when used in foreseeable or reasonably foreseeable conditions. The manufacturer is responsible for the application of sound engineering practice.

Category I


Module A

Category II


Module A2

Module D1

Module E1

Category III


Module B(D) + Module F

Module B(P) + Module C2

Module B(D) + Module D

Module B(P) + Module E

Module H

Category IV


Module G

Module B(P) + Module F

Module B(P) + Module D

Module H1
Get Categories
Reset

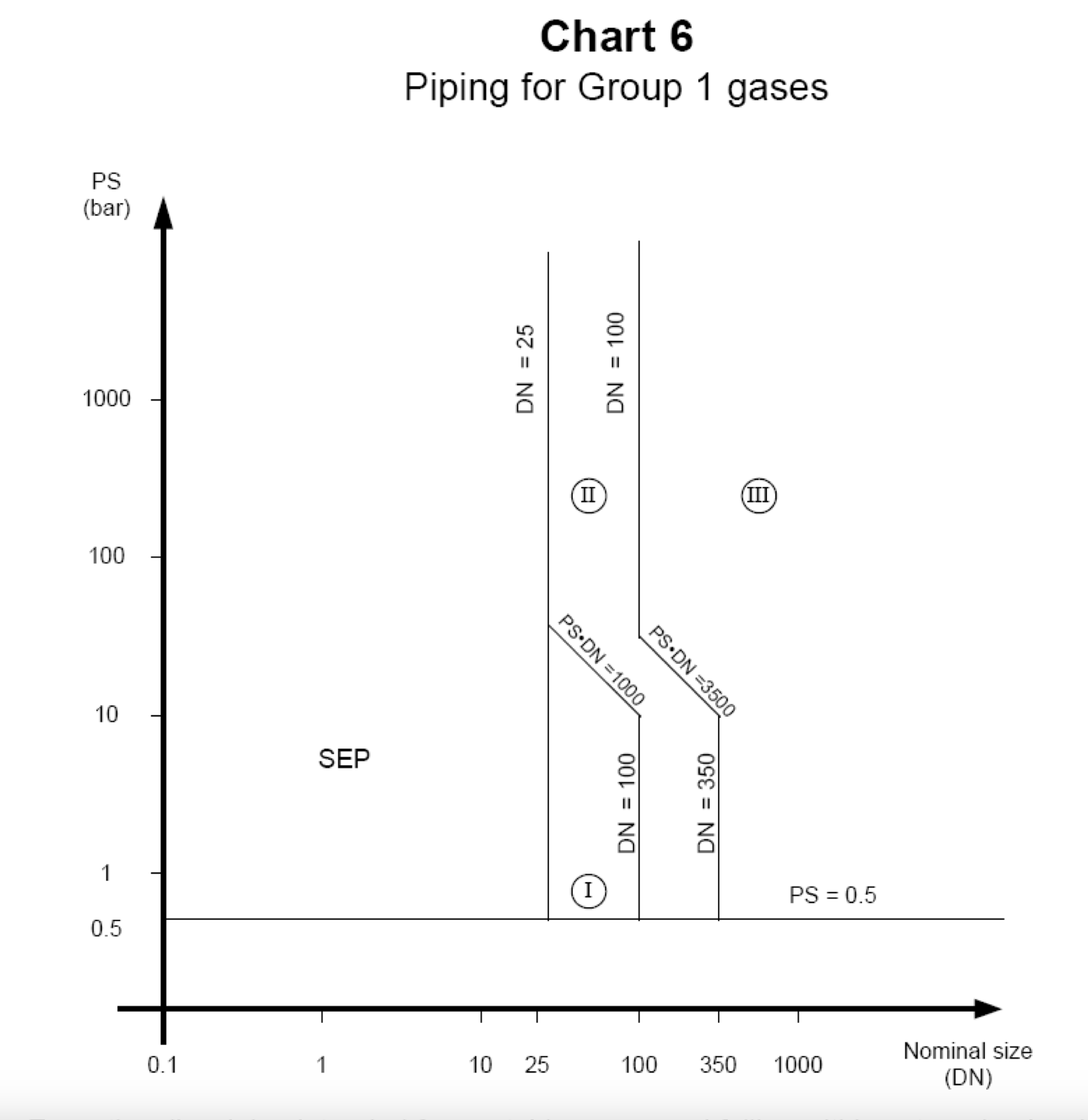

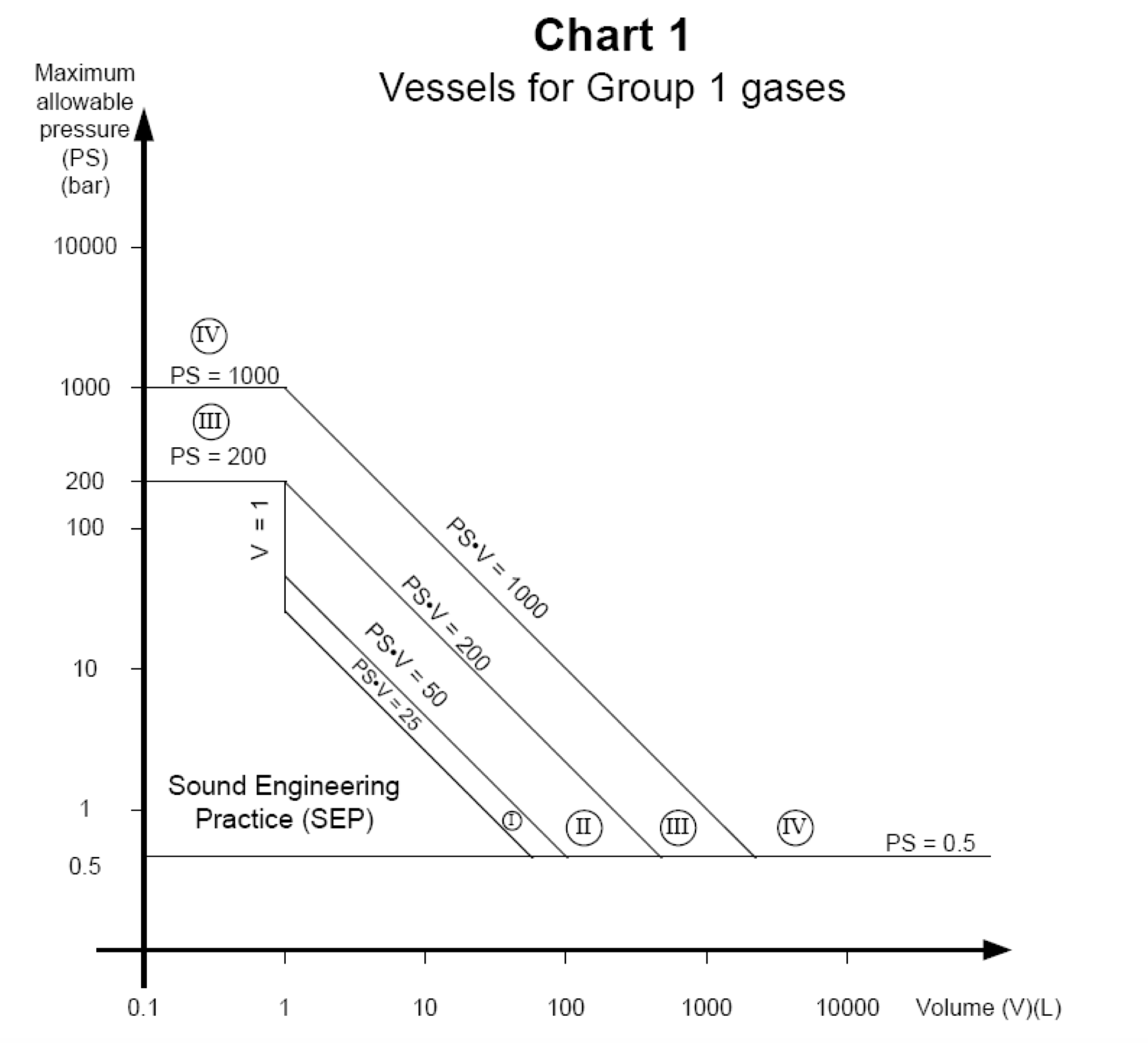

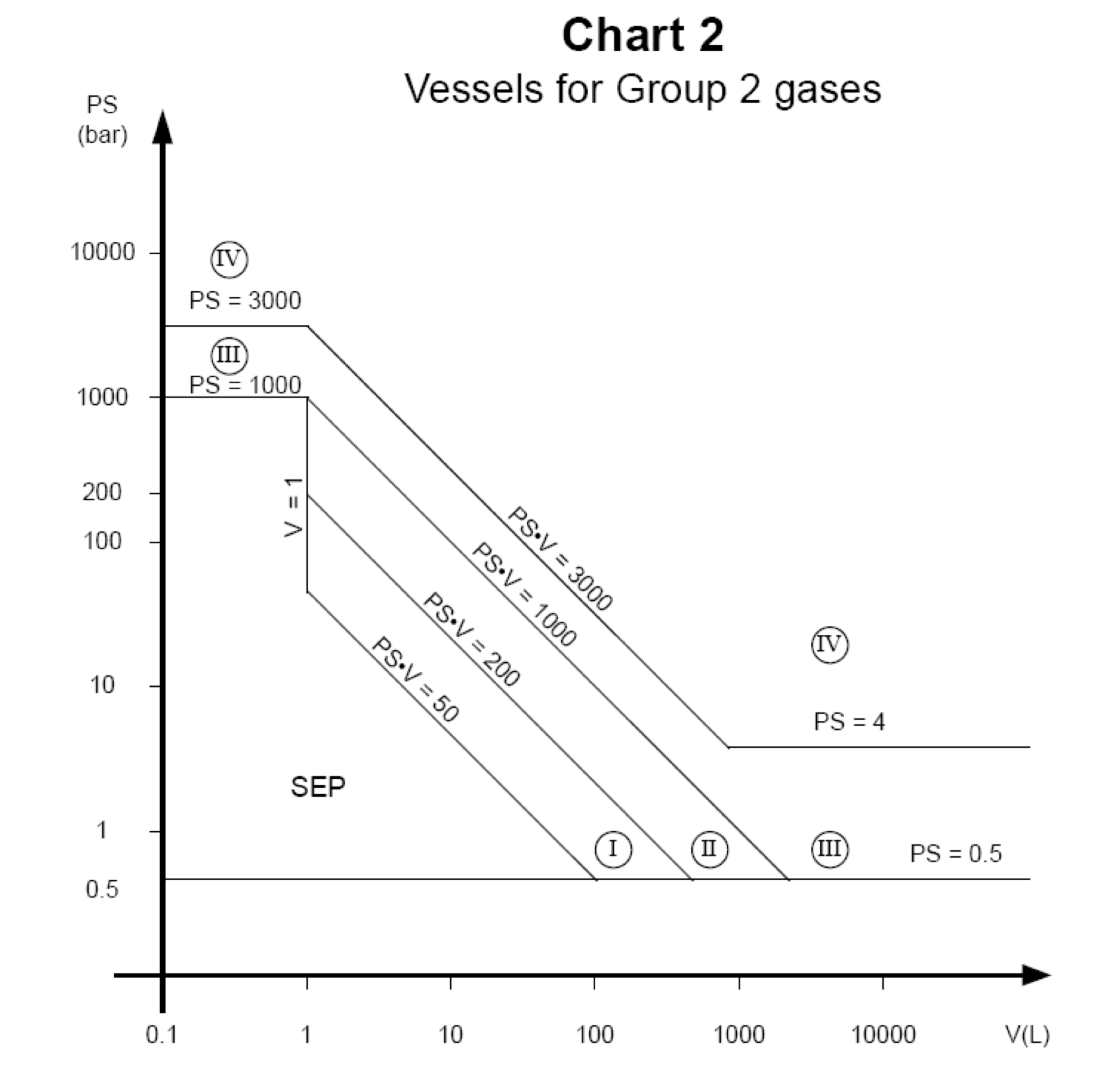

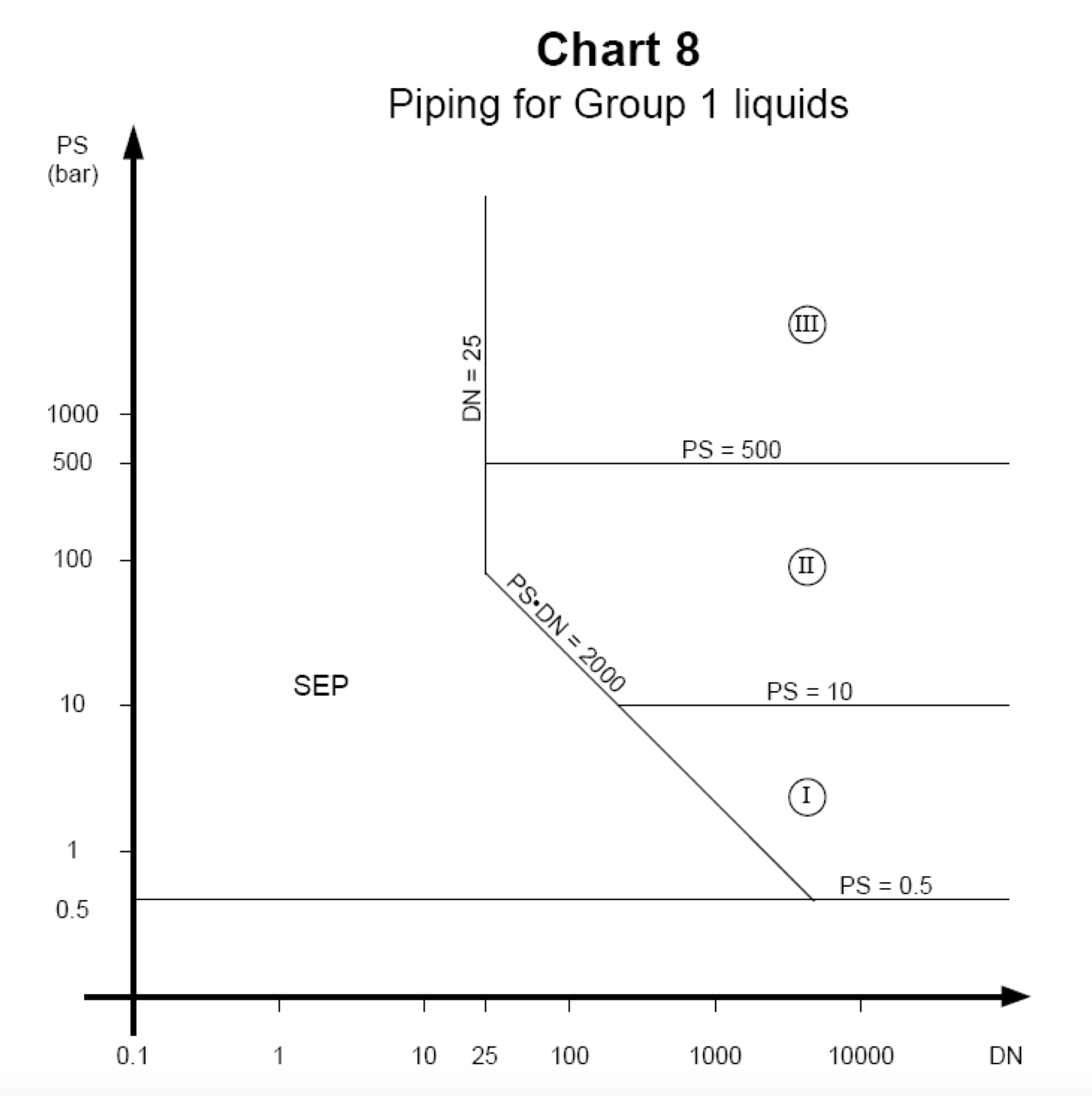

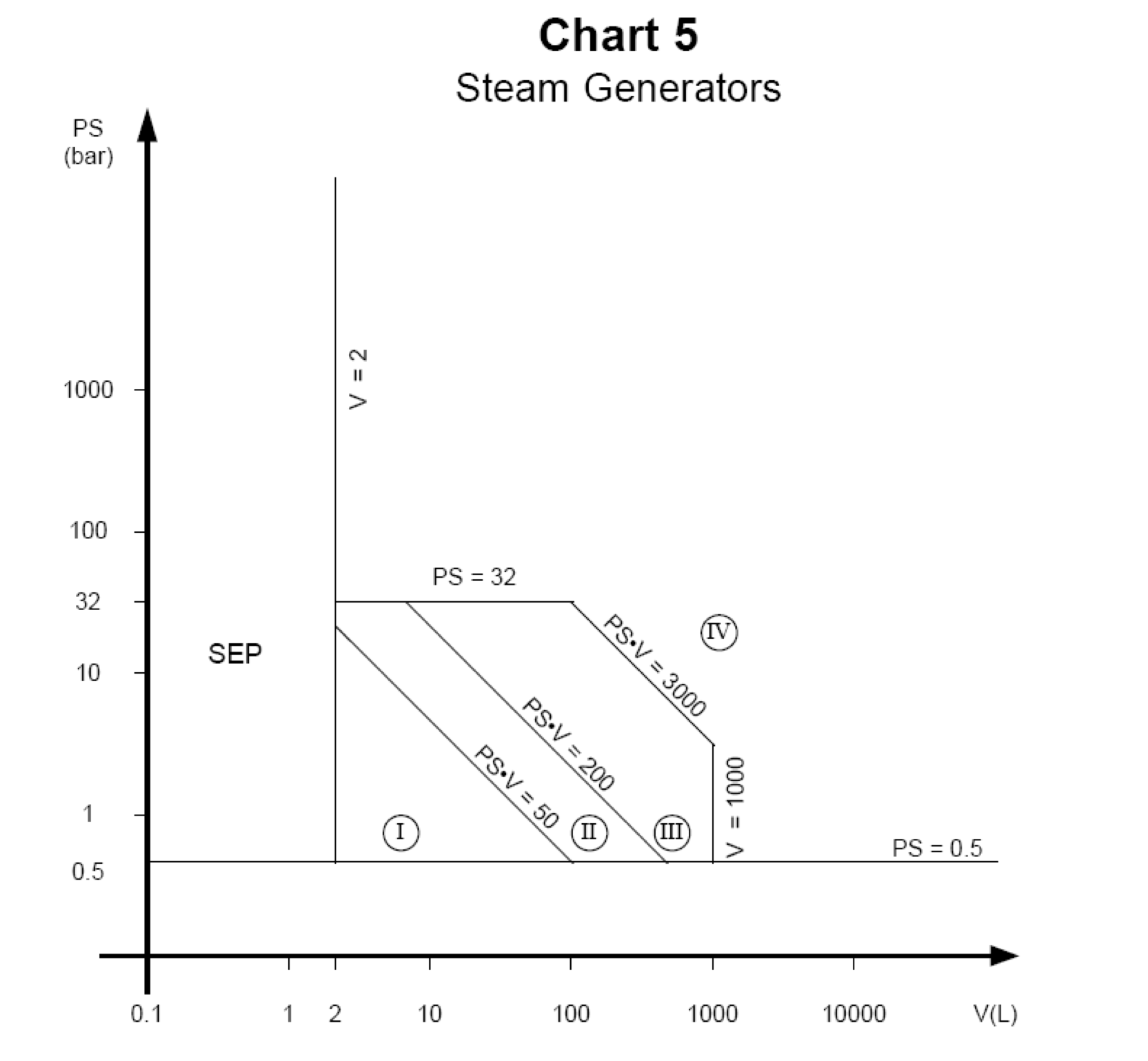

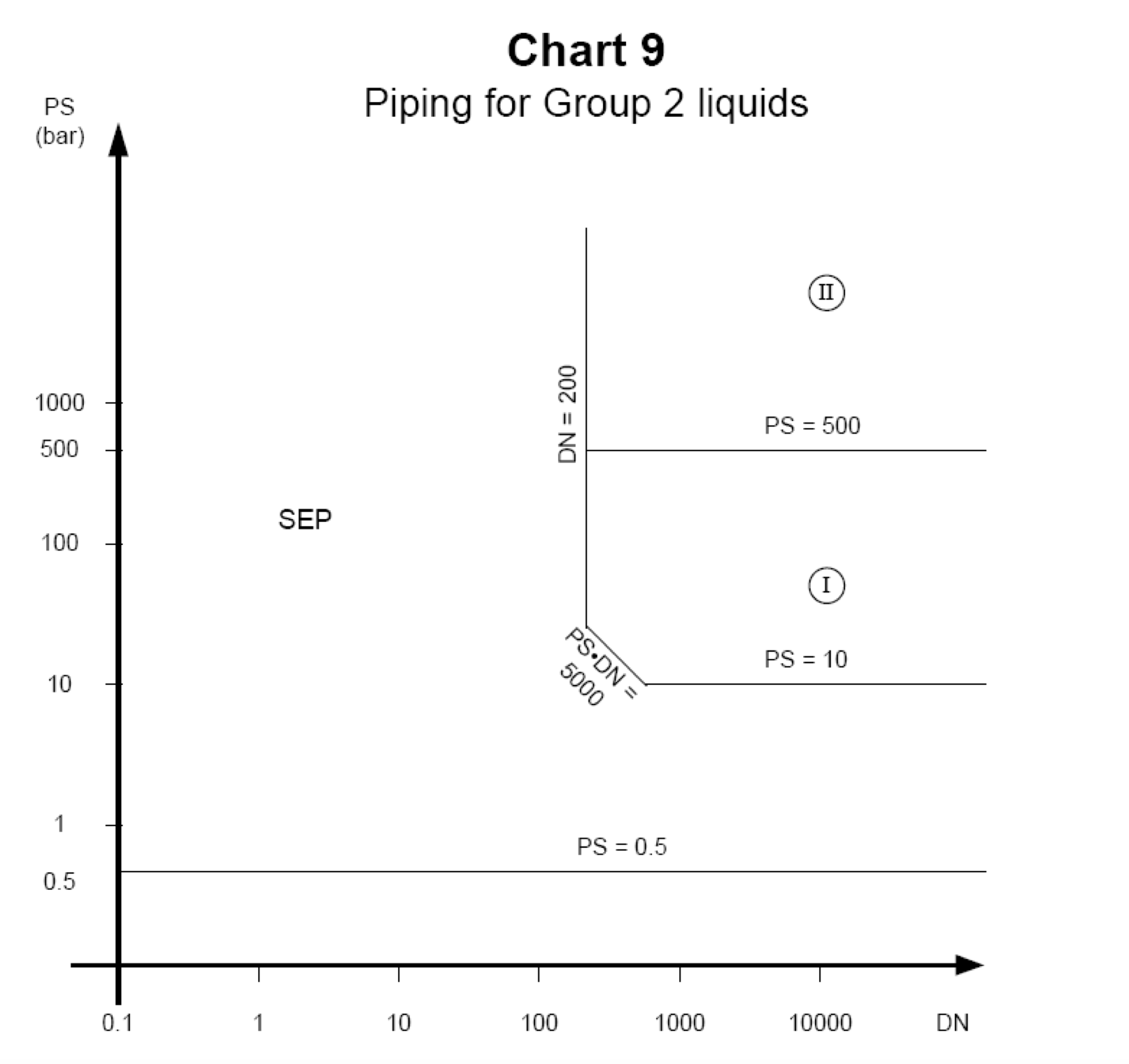

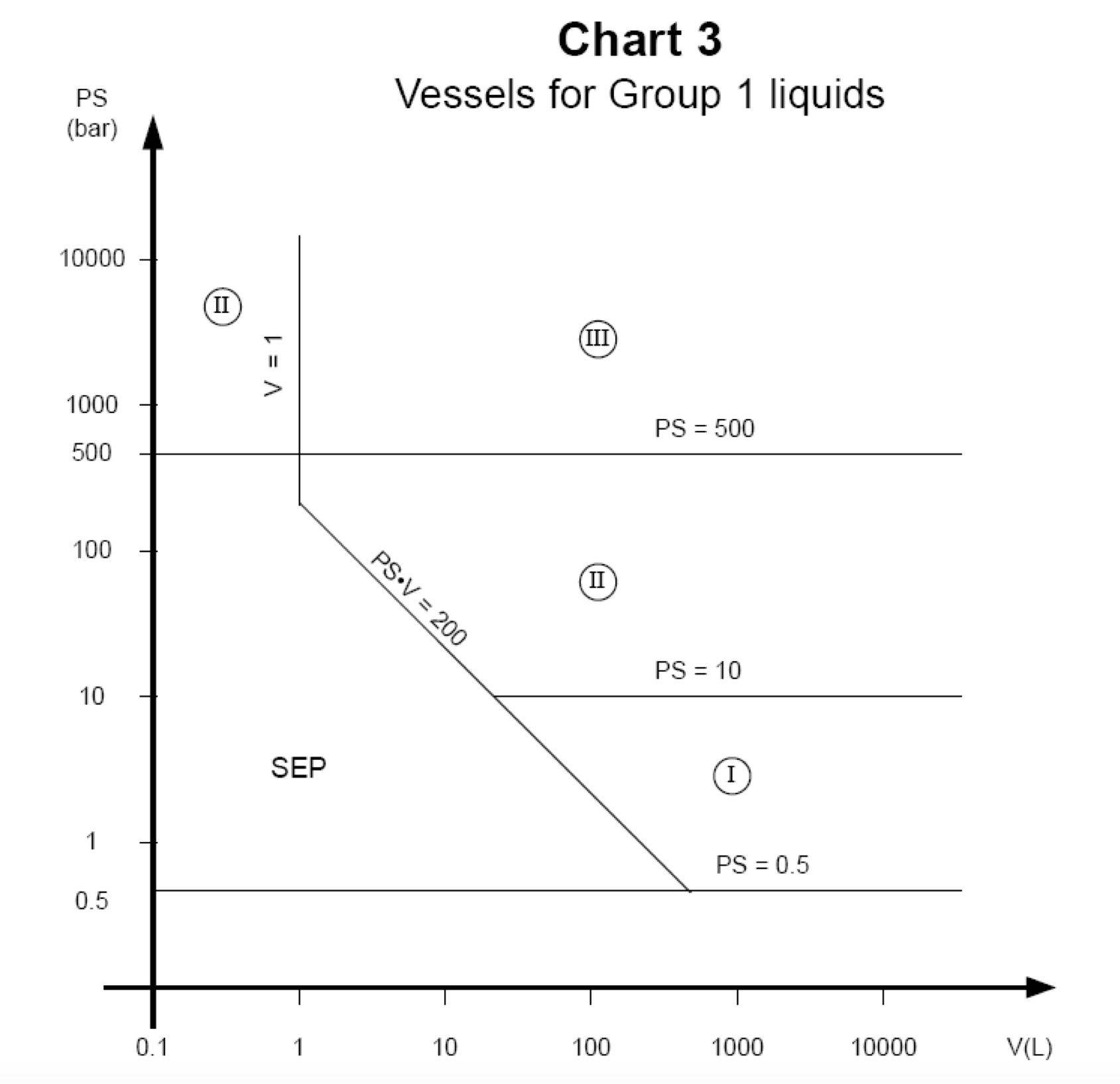

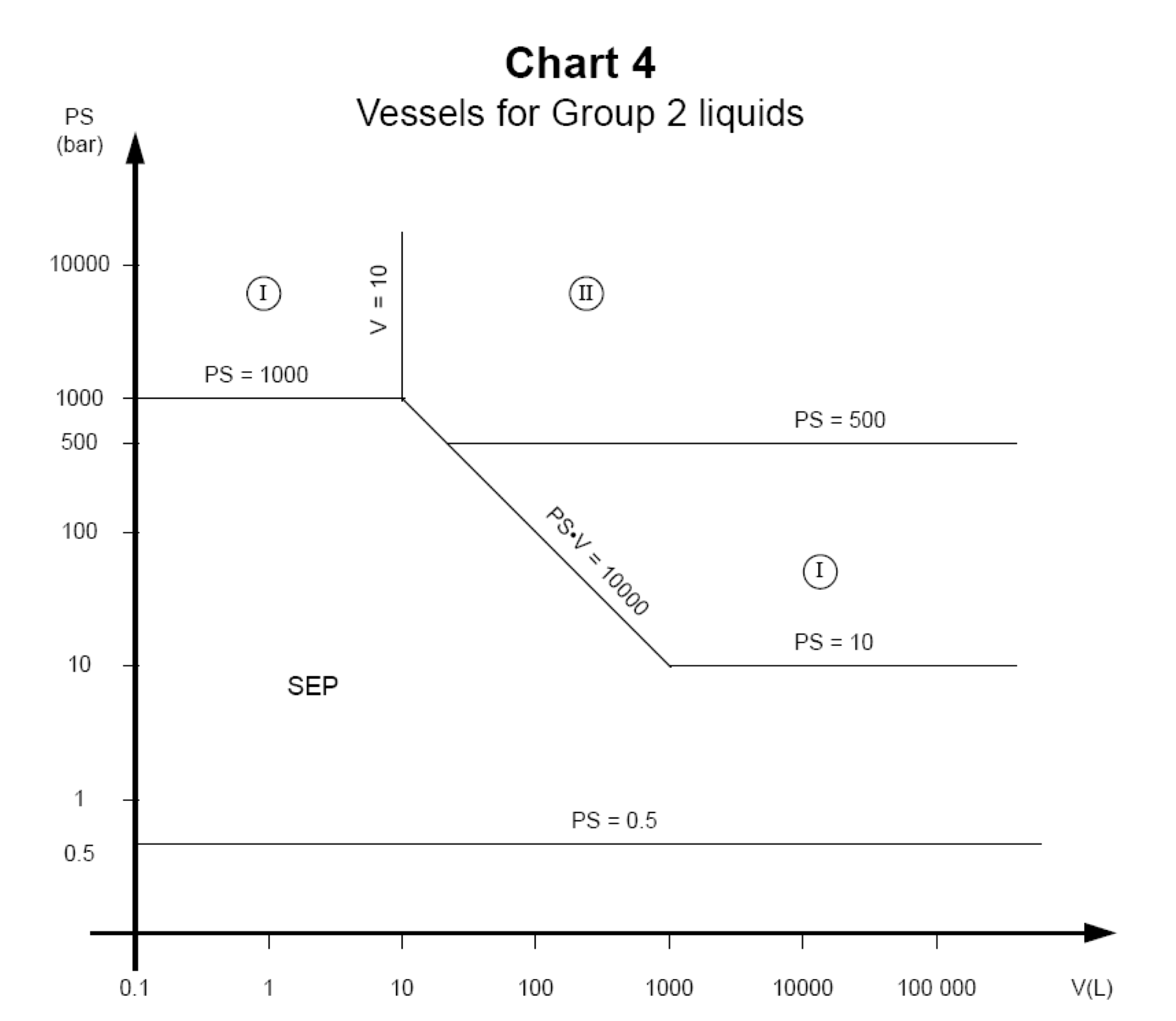

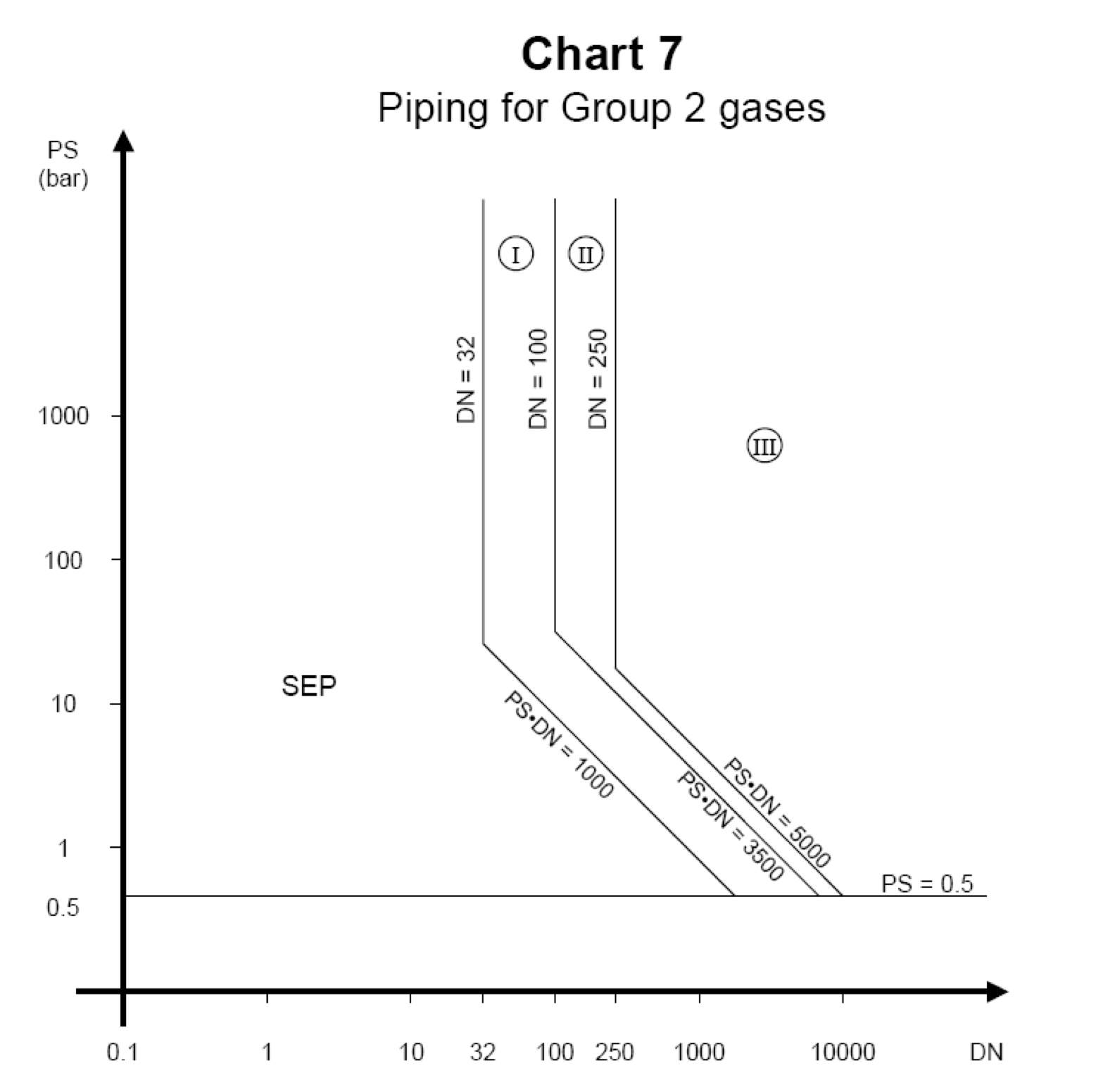

View Gas Group 1 Chart



Close Chart
Close Chart
Close Chart
Close Chart
Close Chart
Close Chart
Close Chart
Close Chart
Close Chart

PED (Pressure Equipment Directive
